Application Notes: Dante in Corporate AV Installations
Boardrooms, conference rooms, campuses, lobbies — real-world deployment scenarios Corporate AV is among the most practical deployment target for…
Overview
The KanexPro JPEG2000 AV over IP family delivers visually lossless 4K60 video distribution over standard 1G Ethernet. Using the ISO/IEC 15444 JPEG2000 codec, these devices encode and decode 4K60 HDR video with approximately one frame of latency — making them suitable for video walls, command centers, and high-quality distribution applications where image fidelity is critical.
JPEG2000 SKUs
| SKU | Description | Key Differentiator |
|---|---|---|
| AVO-IPJP2K | 4K60 JPEG2000 Encoder/Decoder | Full-featured: Dante AV-A, USB KVM, ARC/eARC, relay, digital I/O, fiber |
| AVO-IPJP2KS | 4K60 JPEG2000 Encoder/Decoder — Slim | Copper only, cost-effective, optional Dante AV-A, no USB KVM |
| AVO-IPJP2KD | 4K60 JPEG2000 Encoder/Decoder — Dante Dual LAN | Dedicated Dante LAN port, USB KVM, ARC/eARC, Dolby Atmos/DTS:X |
| AVO-IPJP2KUC-ENC | 4K60 JPEG2000 BYOD Encoder — USB-C & HDMI | Dual input auto-switch, PD 100W laptop charging, encoder only |
| AVO-IPJP2KWP | 4K60 JPEG2000 Wall Plate Encoder | In-wall installation, HDMI input, encoder only |

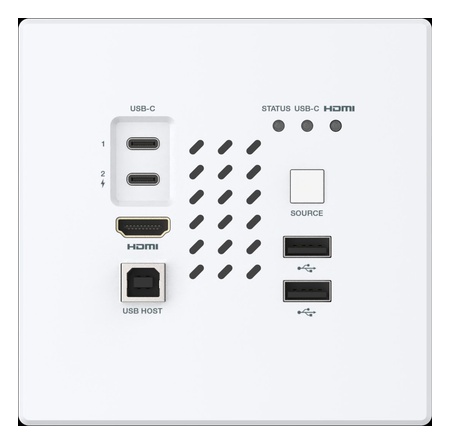

| AVO-IPJP2KWPM | 4K60 JPEG2000 Wall Plate Encoder — Multi-Input | Multiple input options, in-wall, encoder only |
Key Features
- 4K60 4:4:4 visually lossless video over 1G Ethernet
- HDR10 and Dolby Vision pass-through
- 9×9 video wall support with bezel compensation
- Dante AV-A audio networking (select models)
- USB KVM — keyboard, mouse, and USB 2.0 peripheral sharing over IP (select models)
- ARC/eARC audio return (select models)
- Dolby Atmos / DTS:X audio pass-through (select models)
- Fiber SFP port for long-distance runs (select models)
- Auto-discovery on network — no manual IP configuration required for basic operation
Network Requirements
- Managed 1G Ethernet switch with IGMP snooping enabled
- Jumbo frames (MTU 9000) recommended
- All devices must be on the same subnet
- For Dante AV-A: dedicated Dante VLAN or dual-NIC configuration recommended
Recommended Controllers
- AVO-IPCTL-JP2K — IP Controller for JPEG2000 (matrix routing, REST API, RS-232, 9×9 video wall)
Choosing the Right JPEG2000 Model
- Need Dante + full I/O: AVO-IPJP2K
- Cost-sensitive, copper only: AVO-IPJP2KS
- Dante on dedicated network: AVO-IPJP2KD
- BYOD / USB-C laptop input: AVO-IPJP2KUC-ENC
- In-wall source: AVO-IPJP2KWP or AVO-IPJP2KWPM
